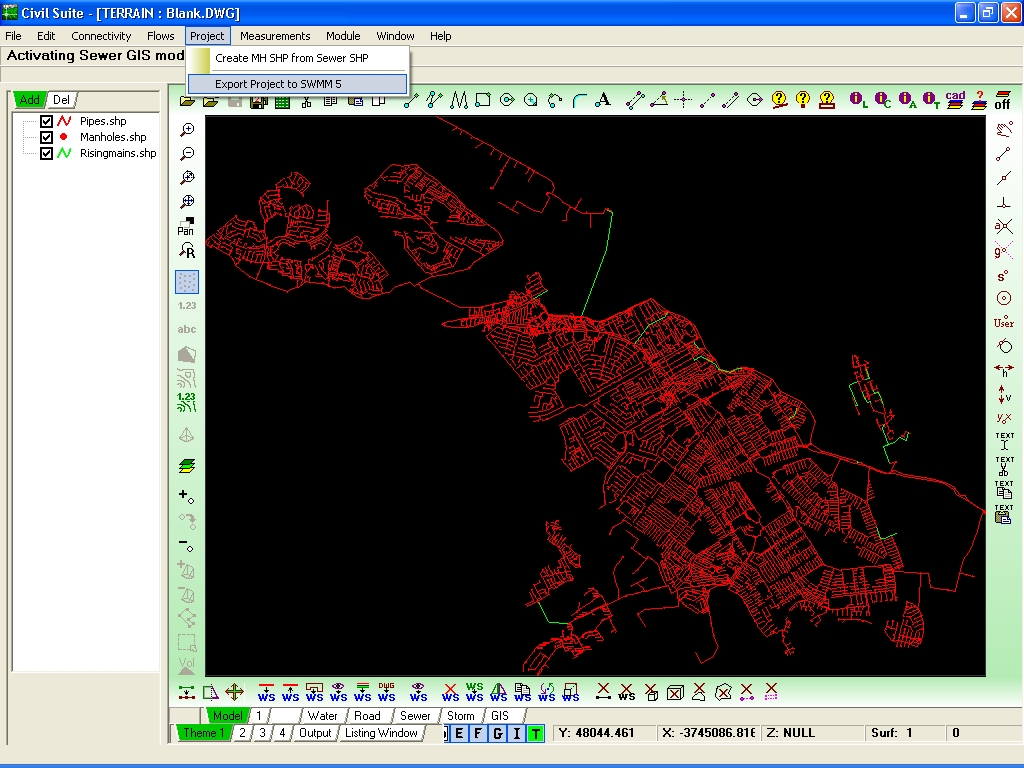

Exporting sewer SHP files for SWMM analysis

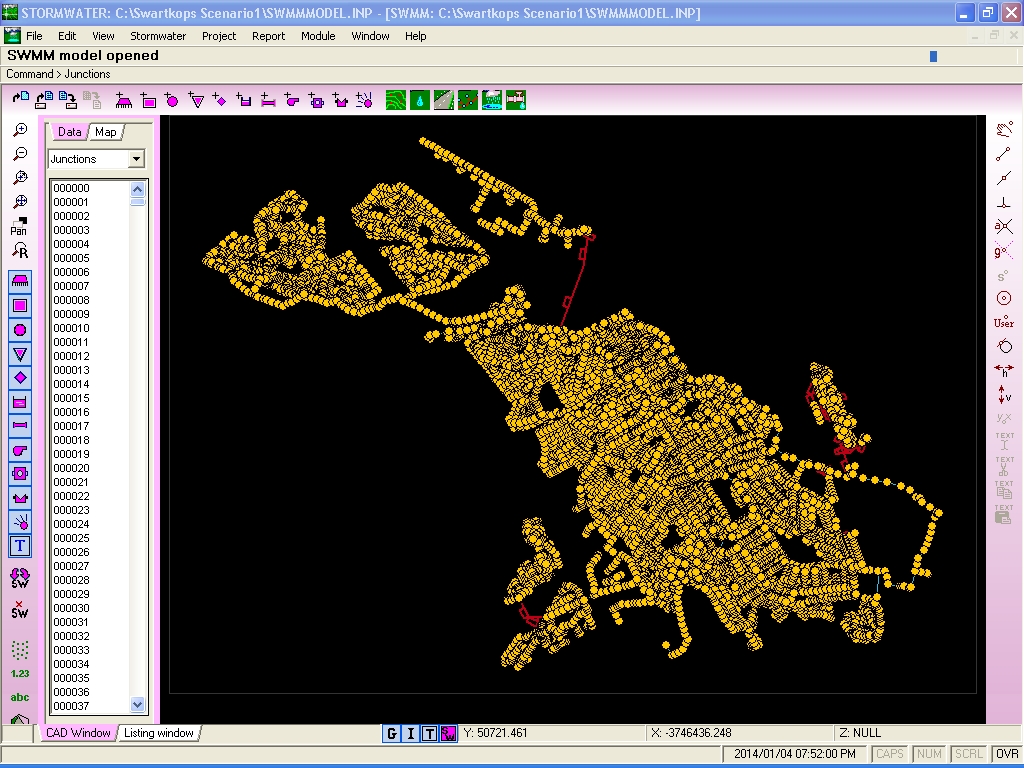

SWMM model created from sewer shape data

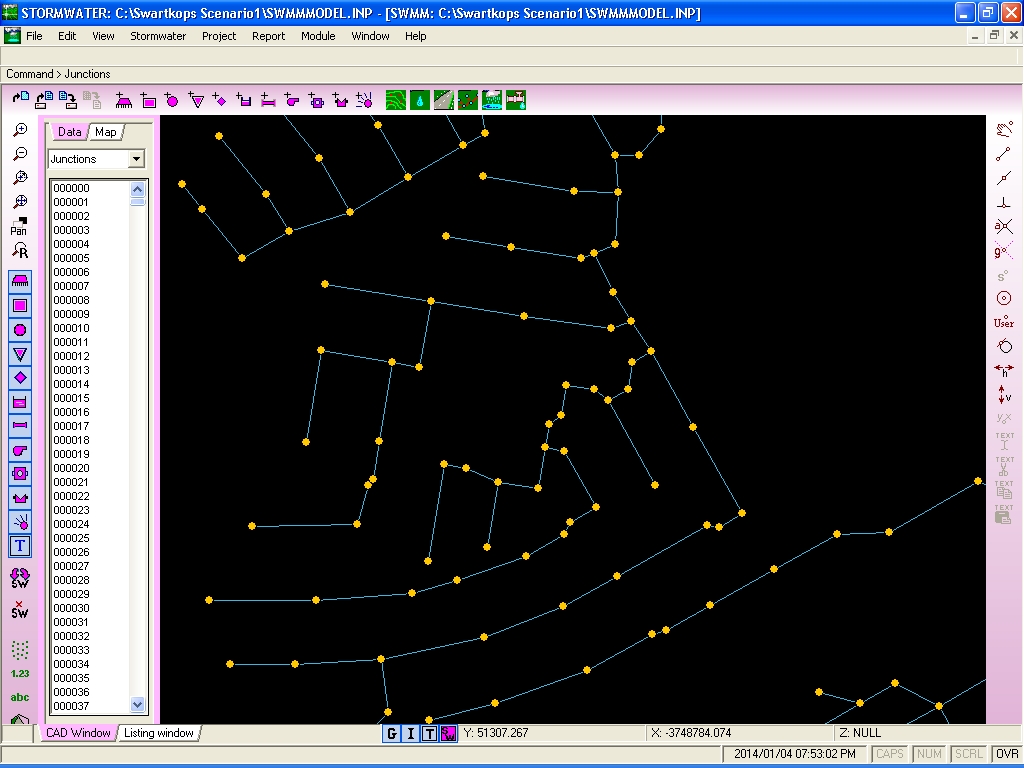

Typical SWMM link and node connectivity

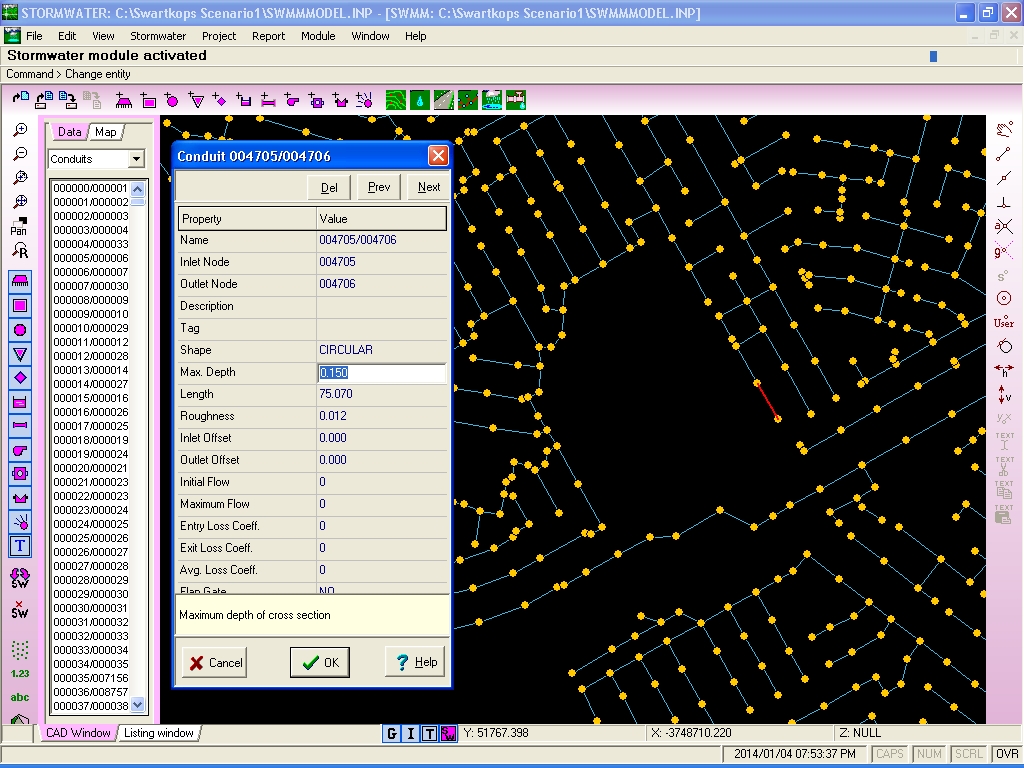

Editing link (pipe) entity

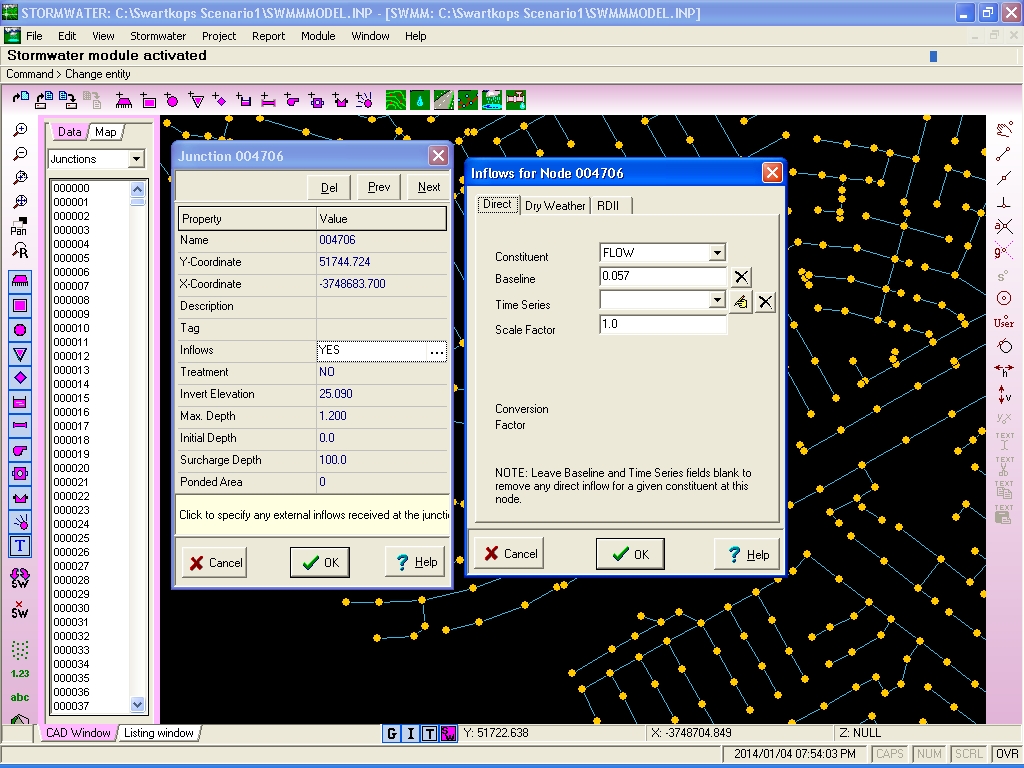

Editing inflows at a node (junction)

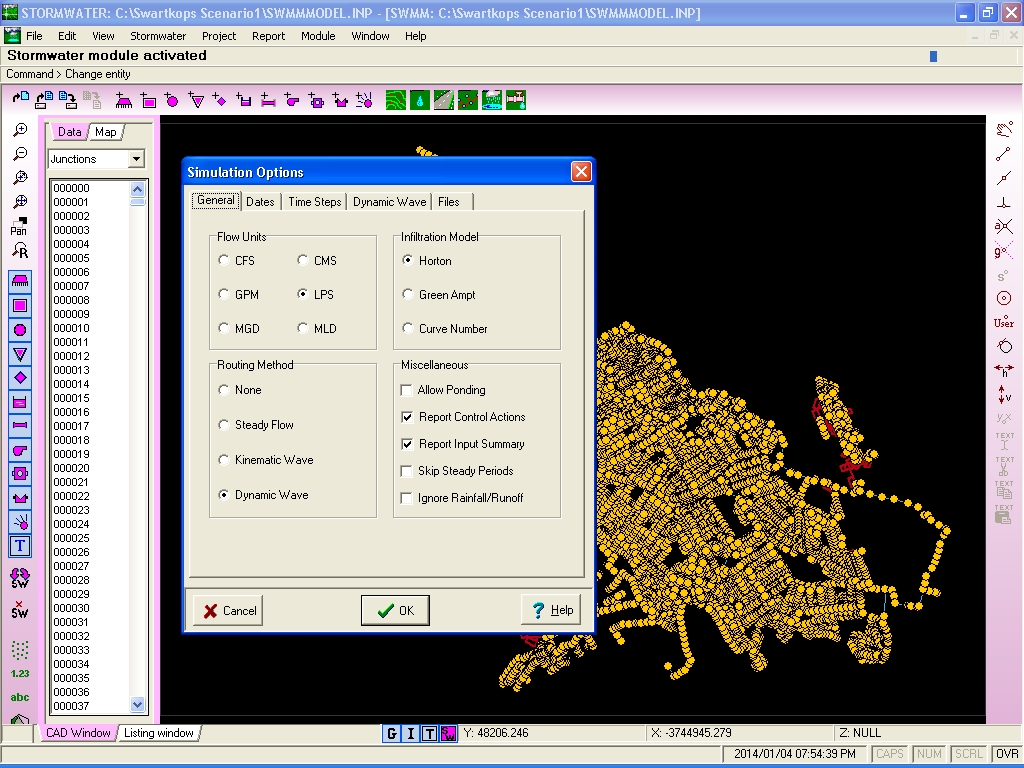

Setting simulation options for analysis

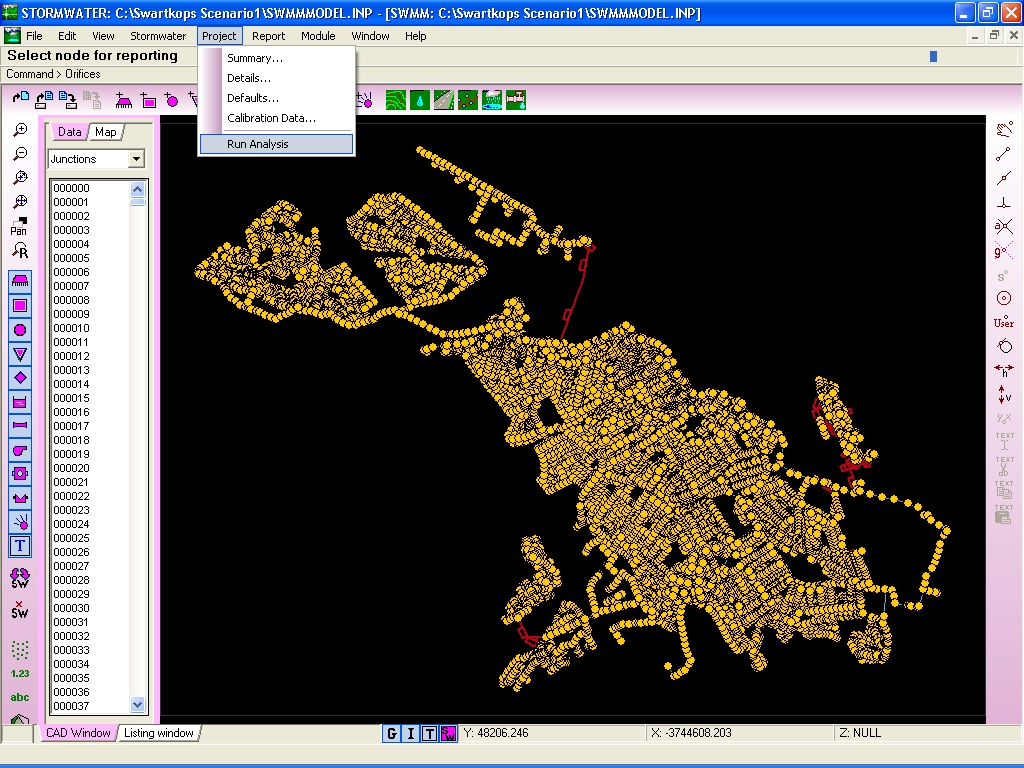

Running the analysis

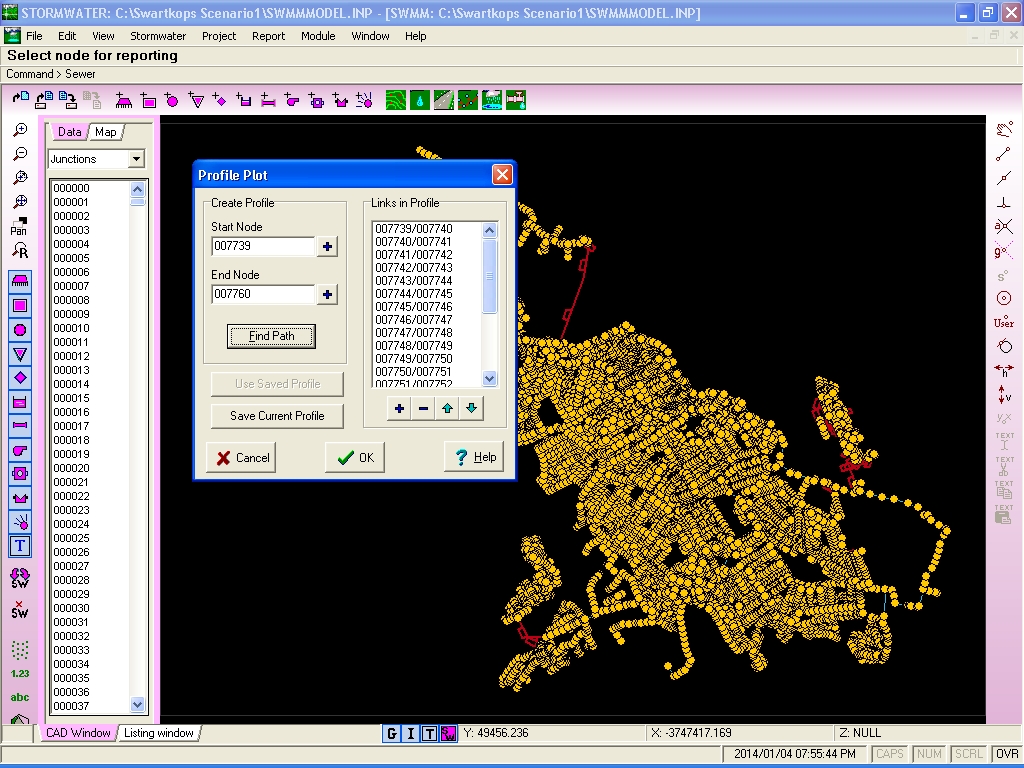

Specifying nodes for previewing a profile

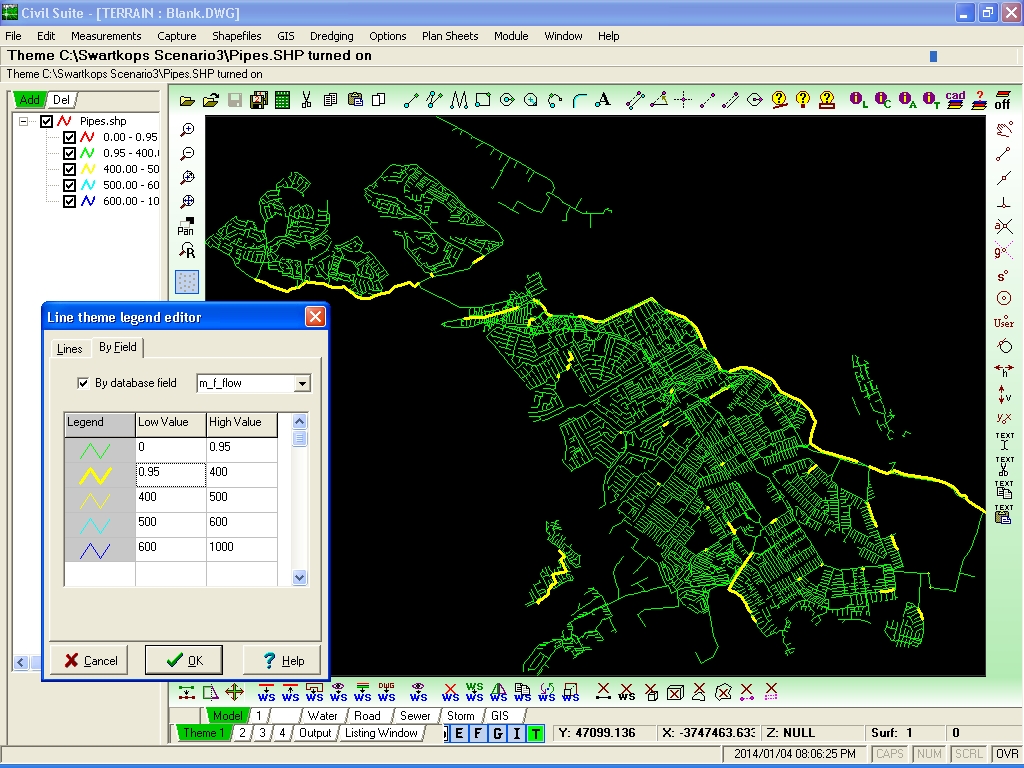

Colour coding SWMM results in the GIS module
These sample images show just some of the features of the Civil Suite engineering design software package. The modules in the Civil Suite include the terrain, road, sewer, water, stormwater, pipeline, CAD, GIS and photo modeller modules. Please use the arrows at the left and right of the screen images to navigate through the samples provided.

 The Stormwater module is based on SWMM 5 engine as produced by the US EPA (Environment Protection Agency). We have also integrated the flow routing module from the SWMM engine with, for example, the GIS data of a sewer network thereby allowing dynamic analysis of a sewer network within a few minutes. The data structures as created for the Nelson Mandela Bay Municipality sewer asset register are used in this analysis system. KCS Consultants is currently the lead consultant implementing a R100m project for the augmentation of the Swartkops Low Level Collector Sewer on behalf of the NMBM. The Stormwater module was used in the master planning of the Chatty and Swartkops Catchment areas.

For more information please also download the videos of the Civil Suite Stormwater module in action.
Alternatively, for an interactive online demonstration please contact us and we will schedule a WebEx demonstration when convenient.
