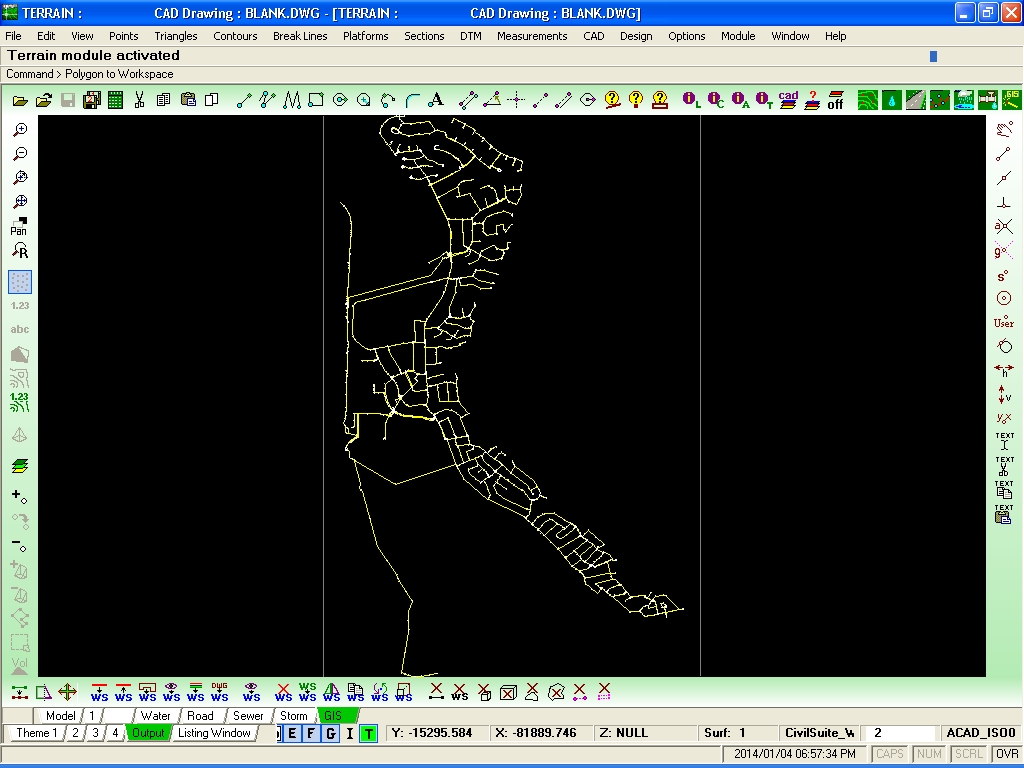

CAD lines to be converted to water model
Generating water model from the visible CAD lines

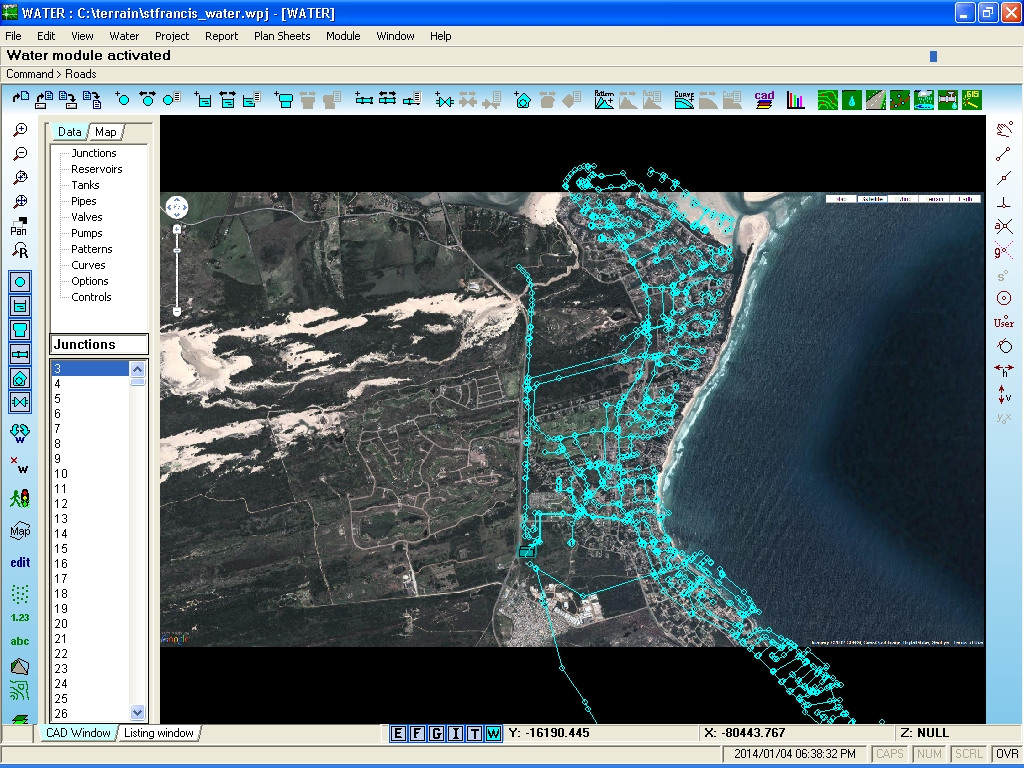

Overlaying aerial photography image onto water model

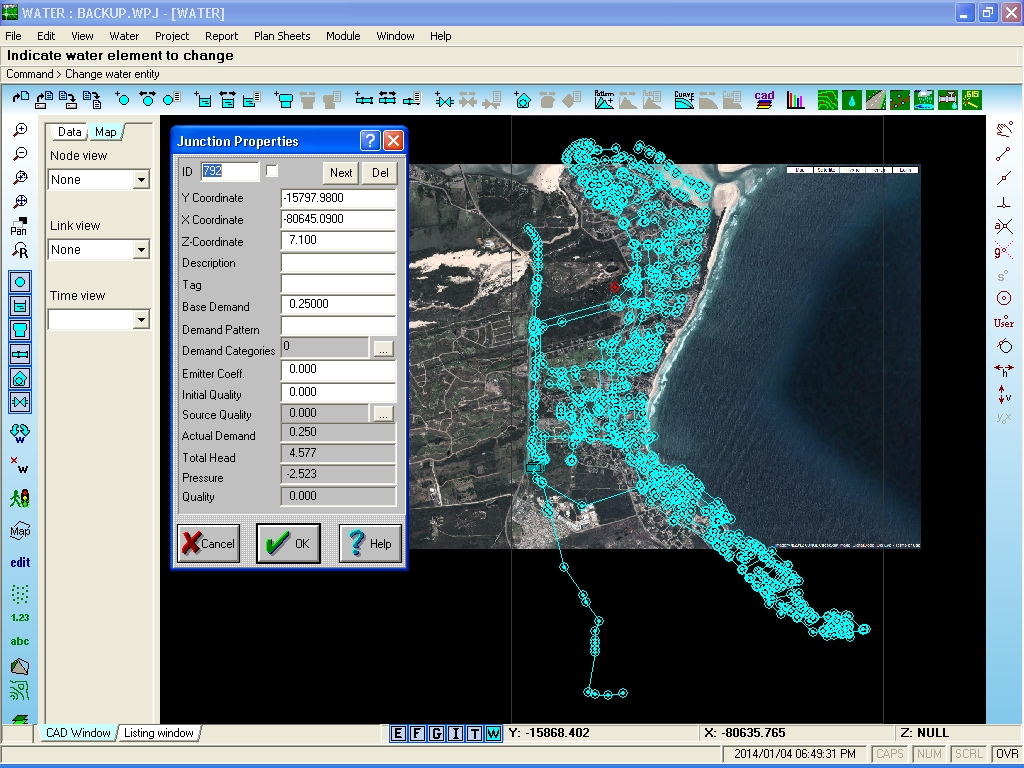

Editing junctions (nodes)

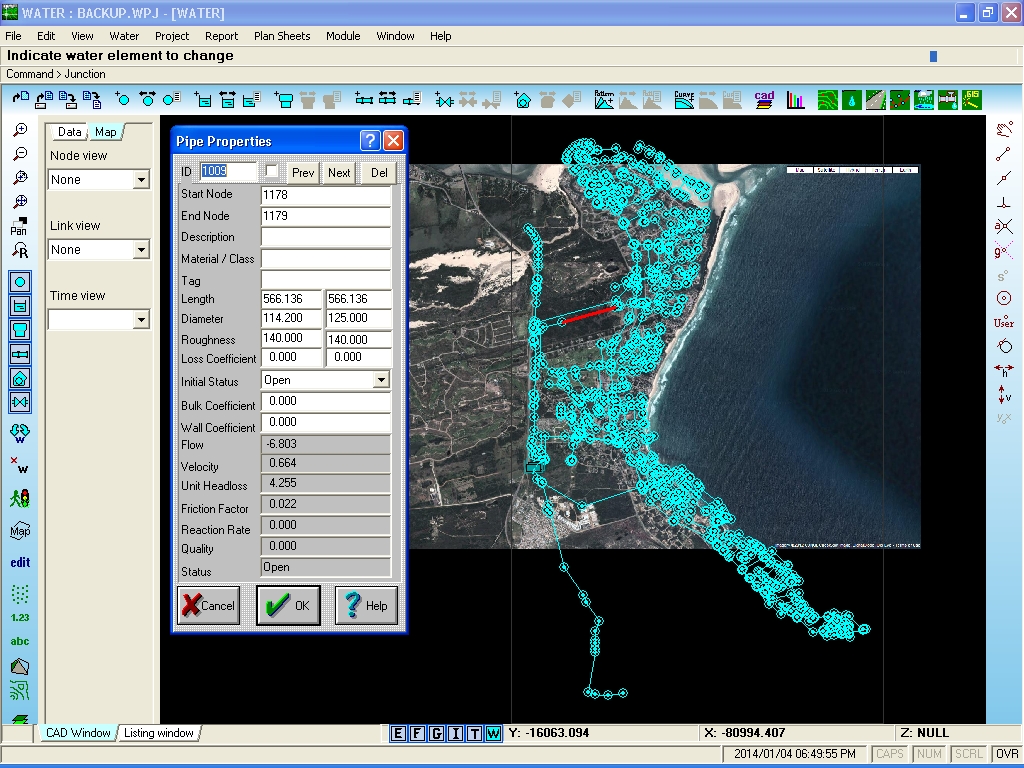

Editing pipes (links)

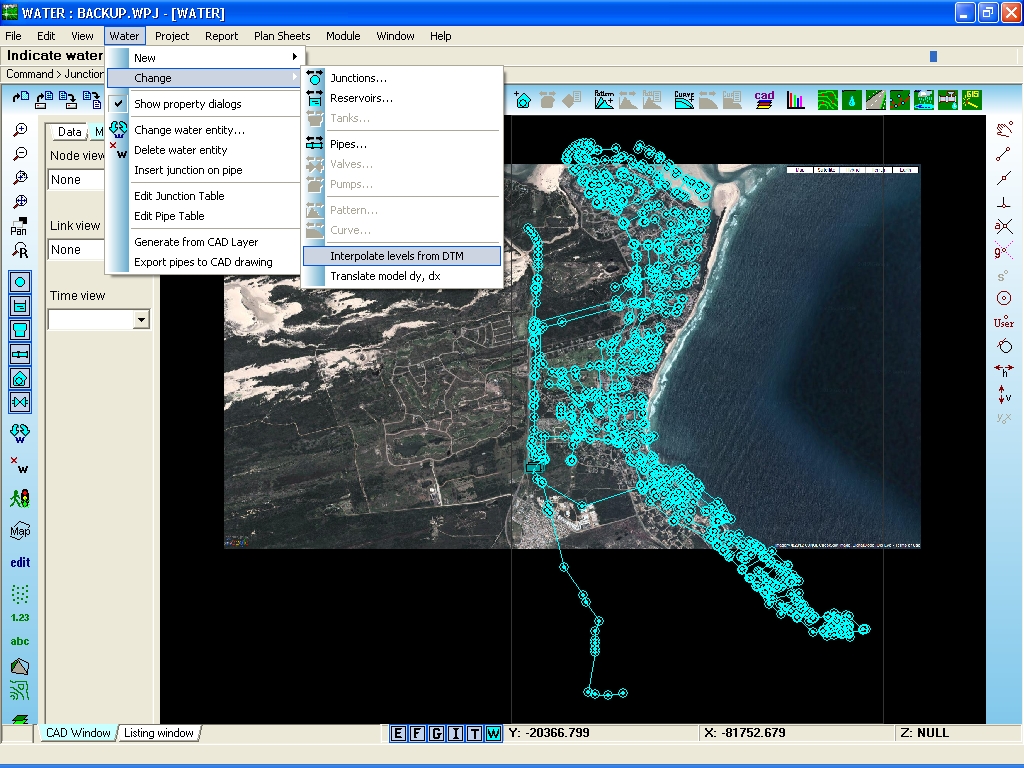

Extracting junction elevations from Terrain model

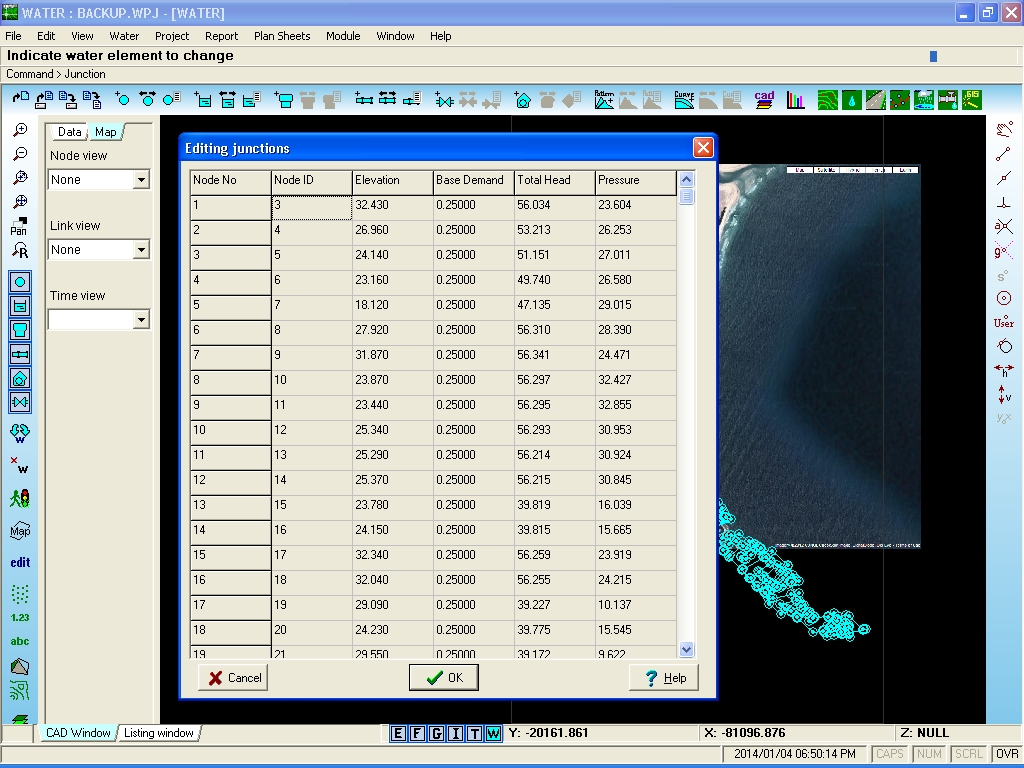

Editing junction data in tabular fashion

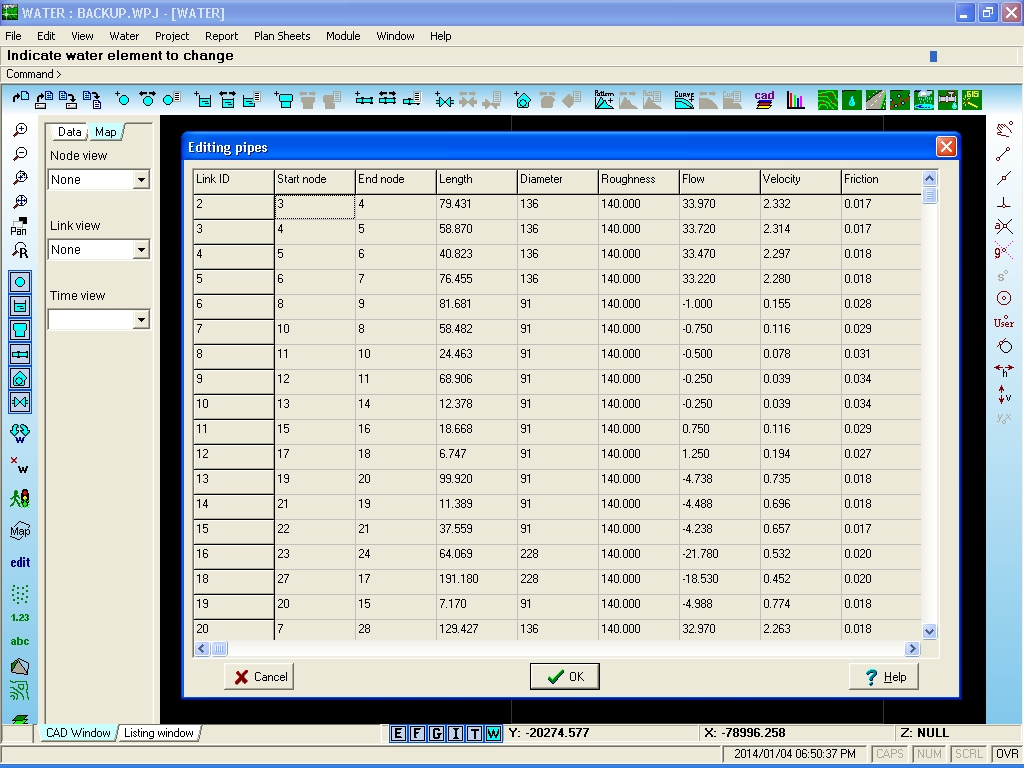

Editing pipe data in tabular fashion

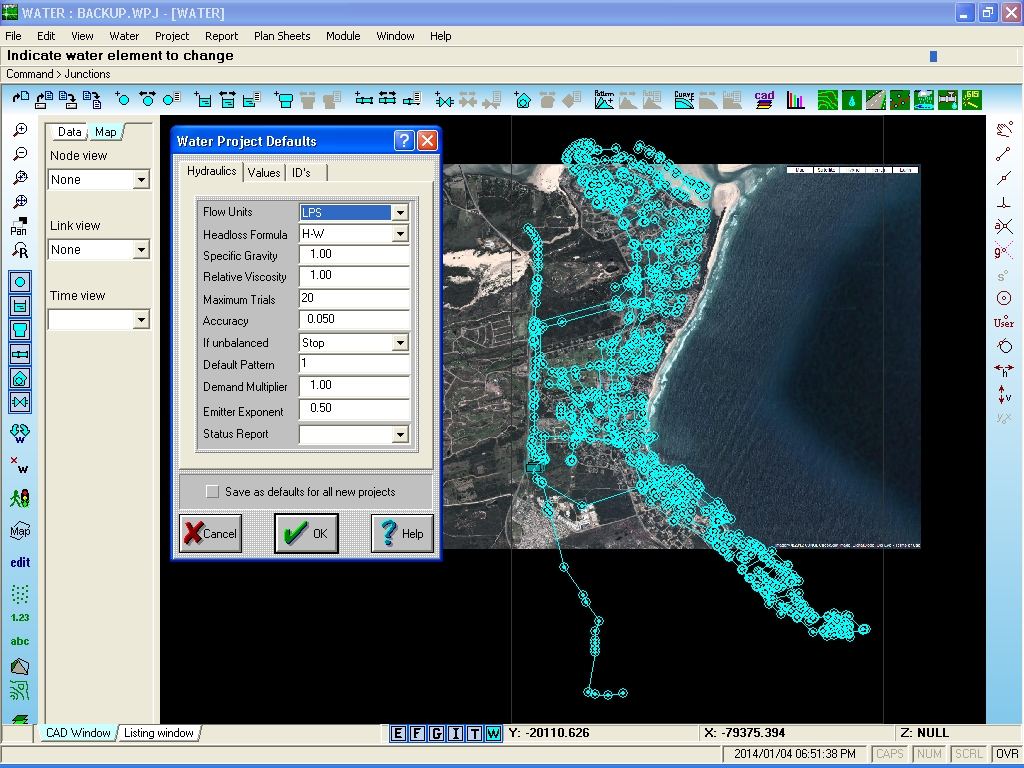

Setting analysis defaults

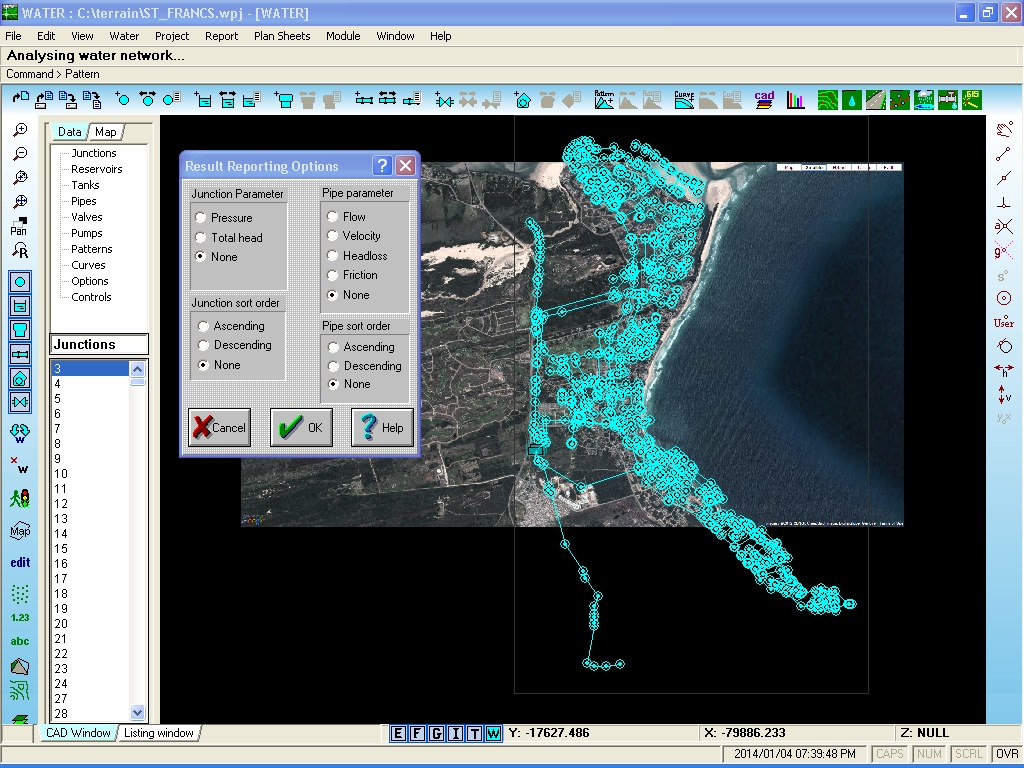

Setting analysis options
Pre-viewing junction results

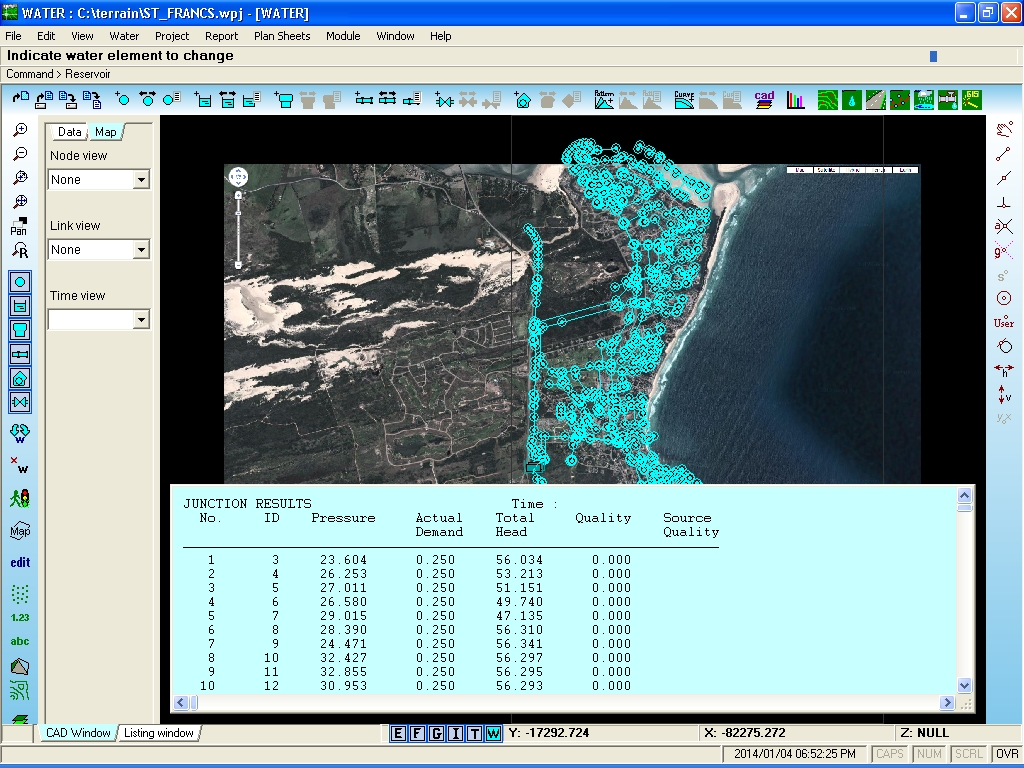

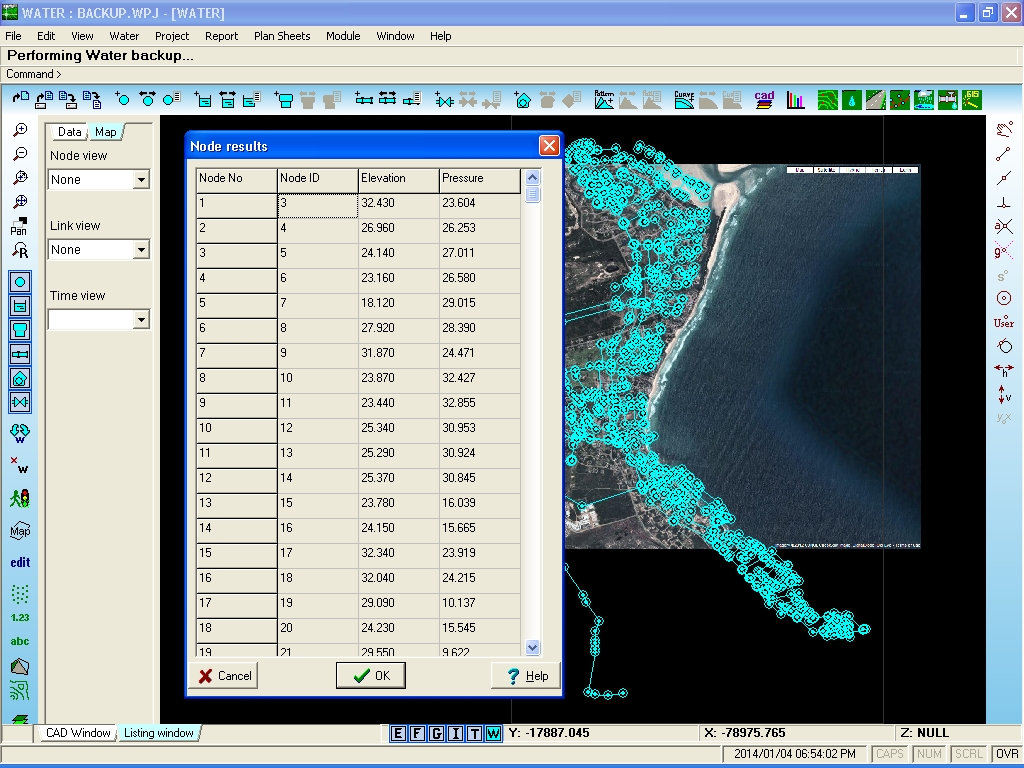

Viewing junction results

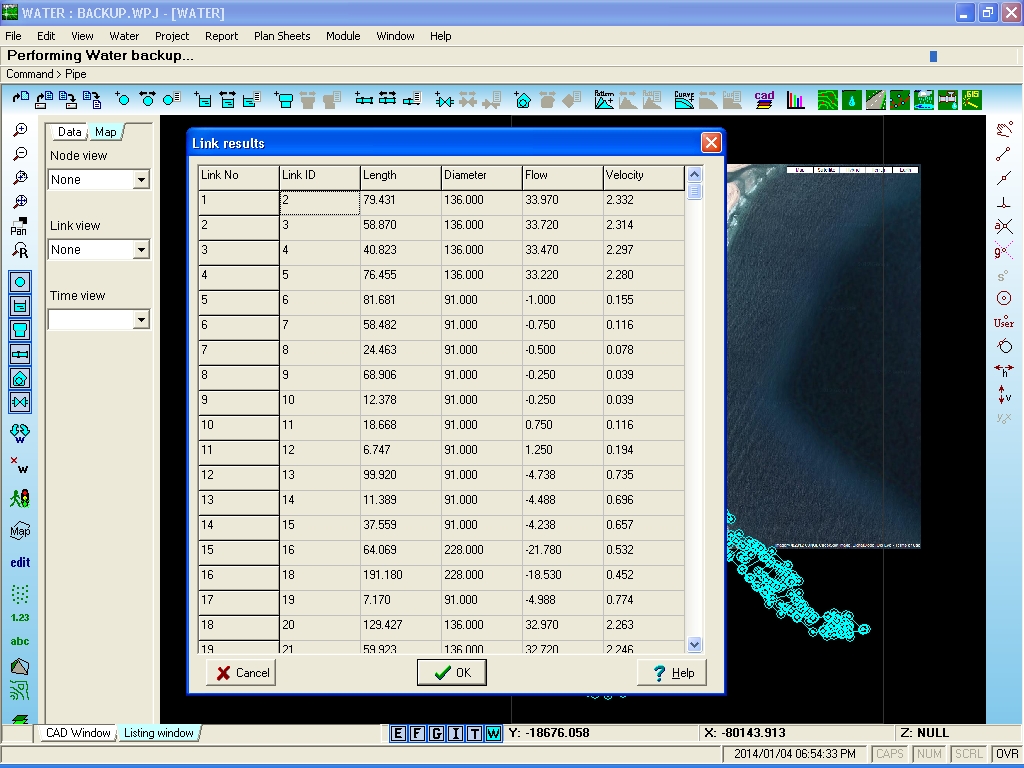

Viewing pipe results

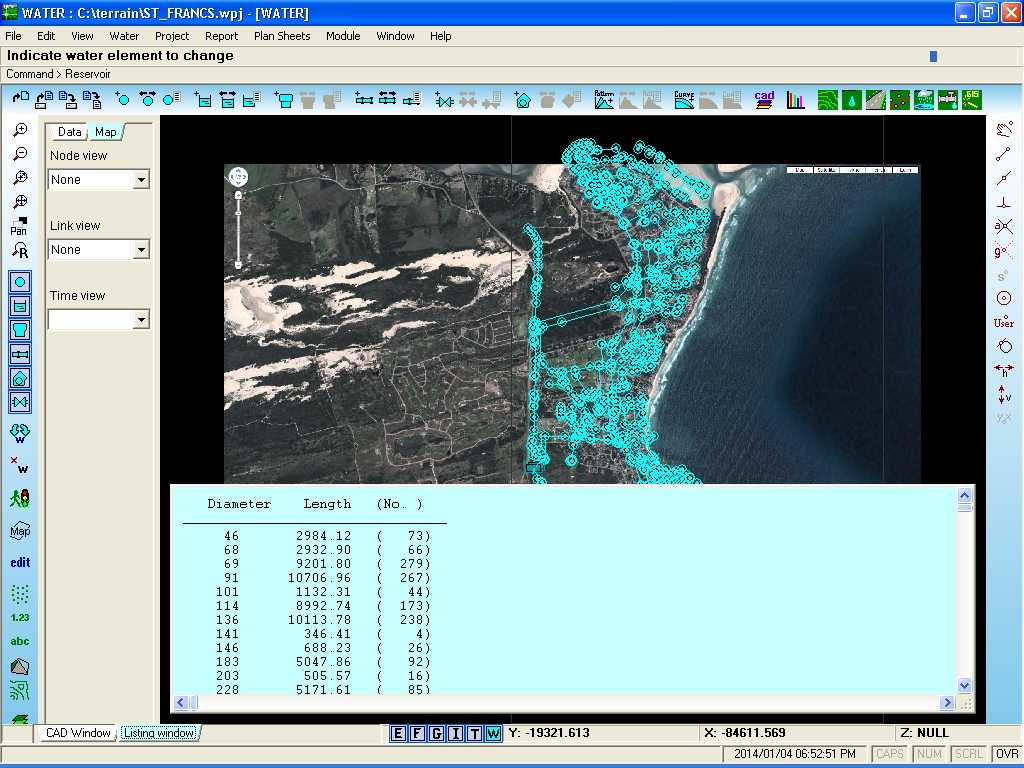

Summary of water network by element

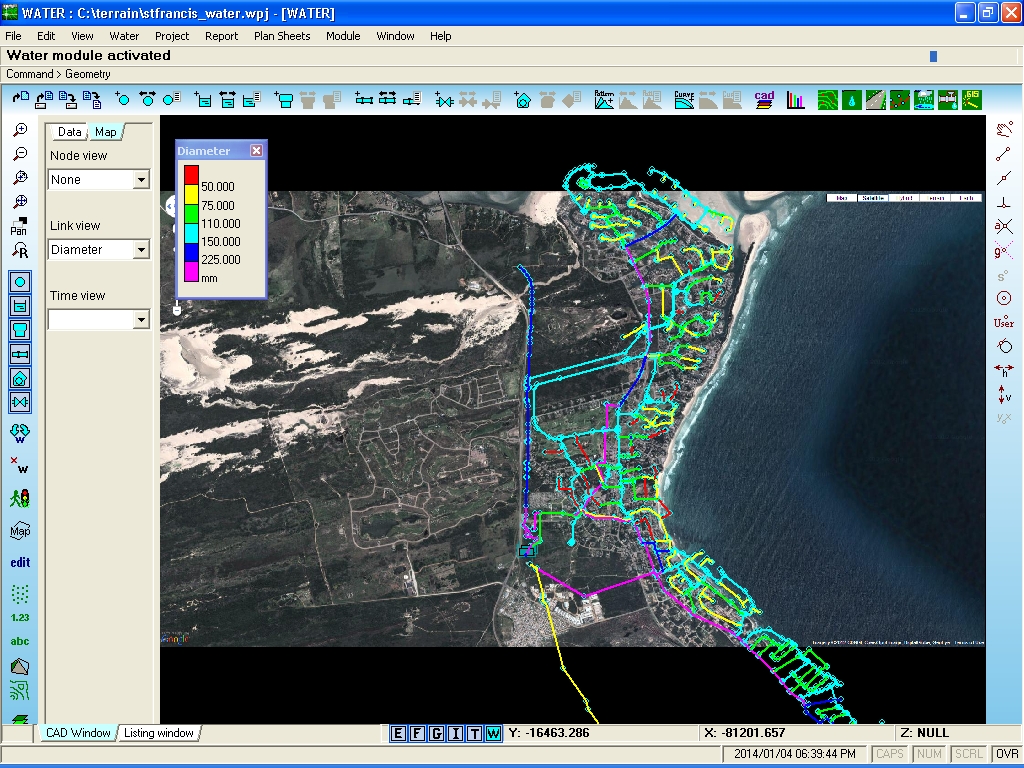

Colour coding pipe diameters

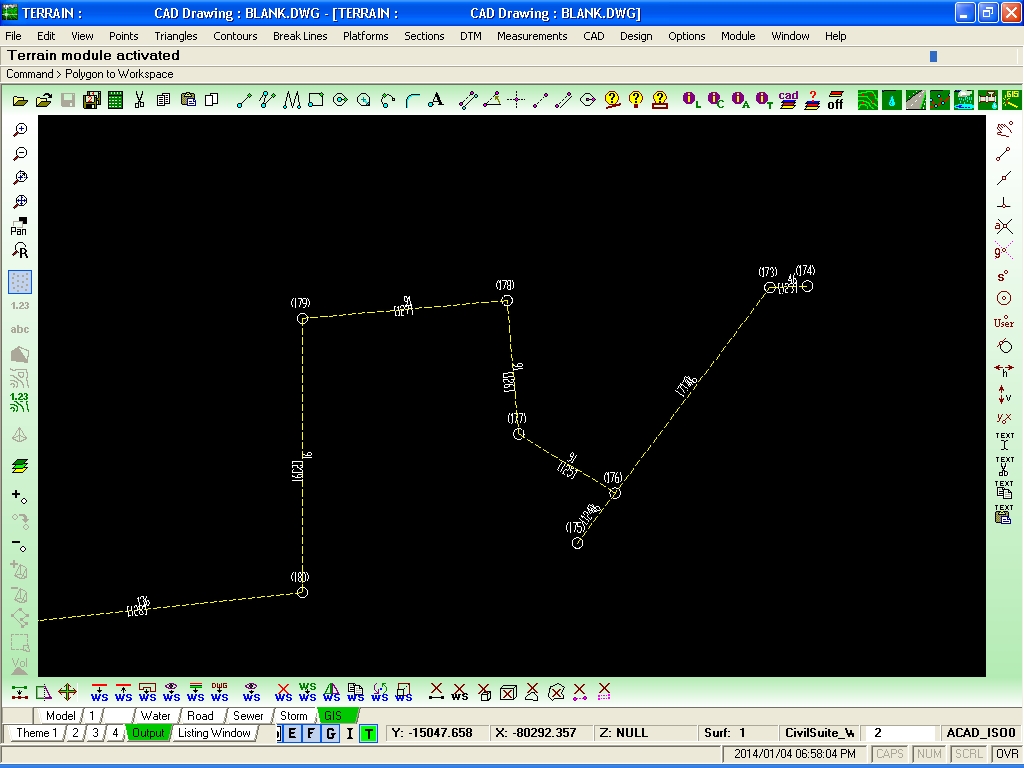

CAD drawing generated from water network

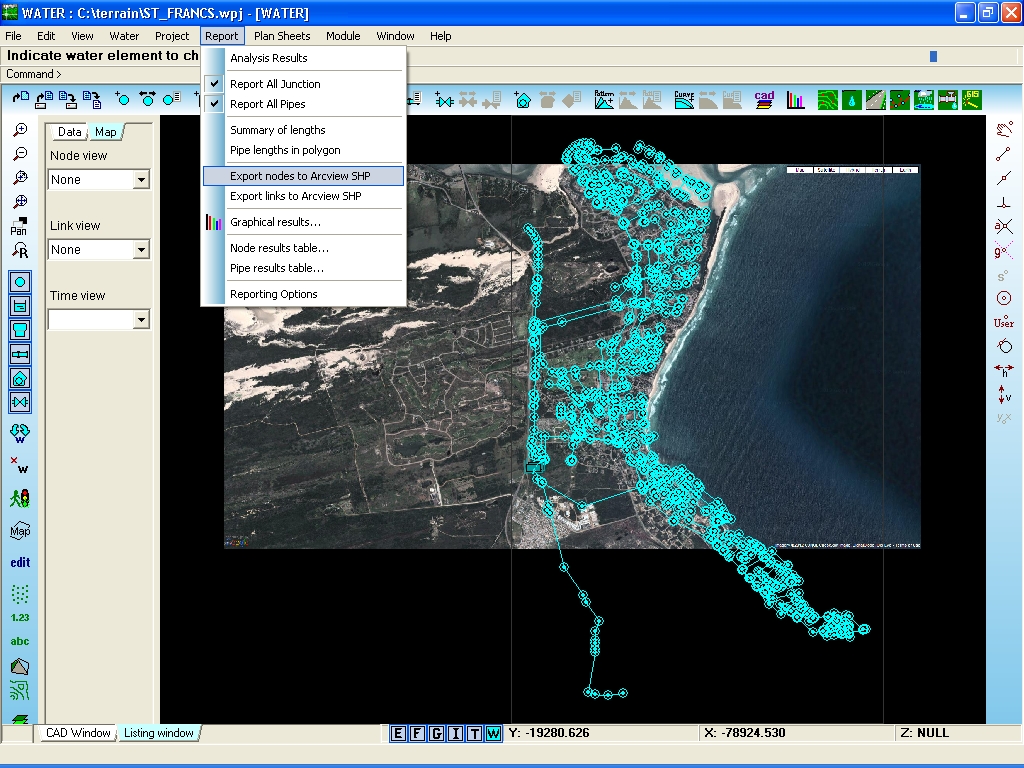

Exporting nodes to GIS Arcview Shape file

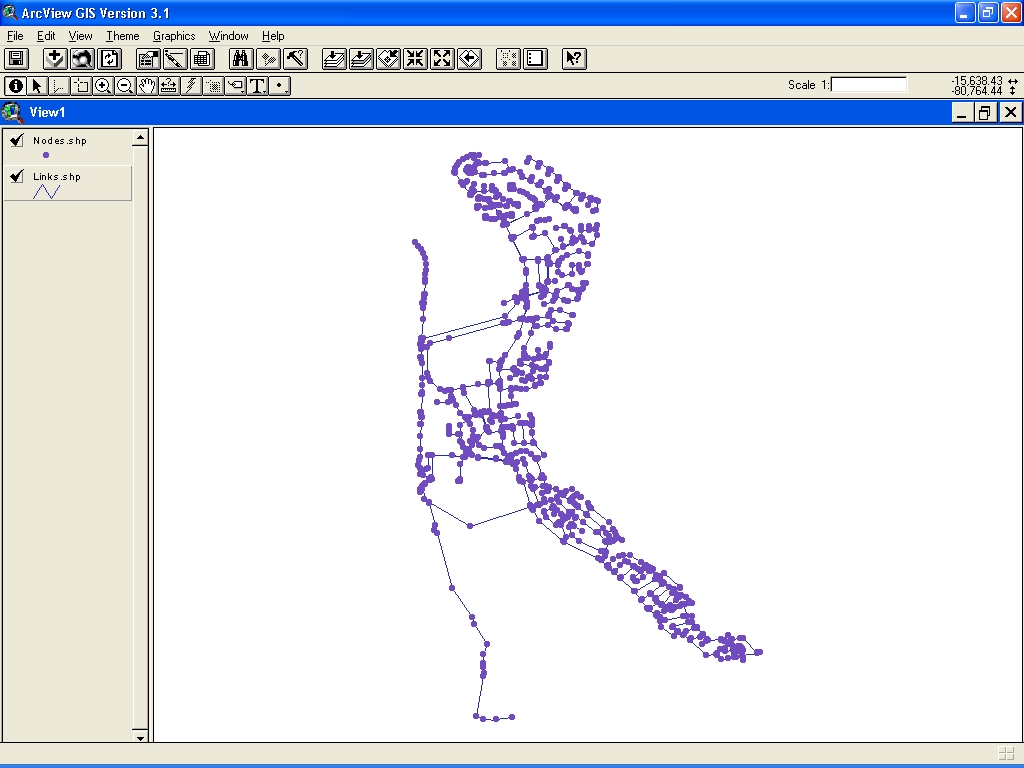

Water model as exported to GIS

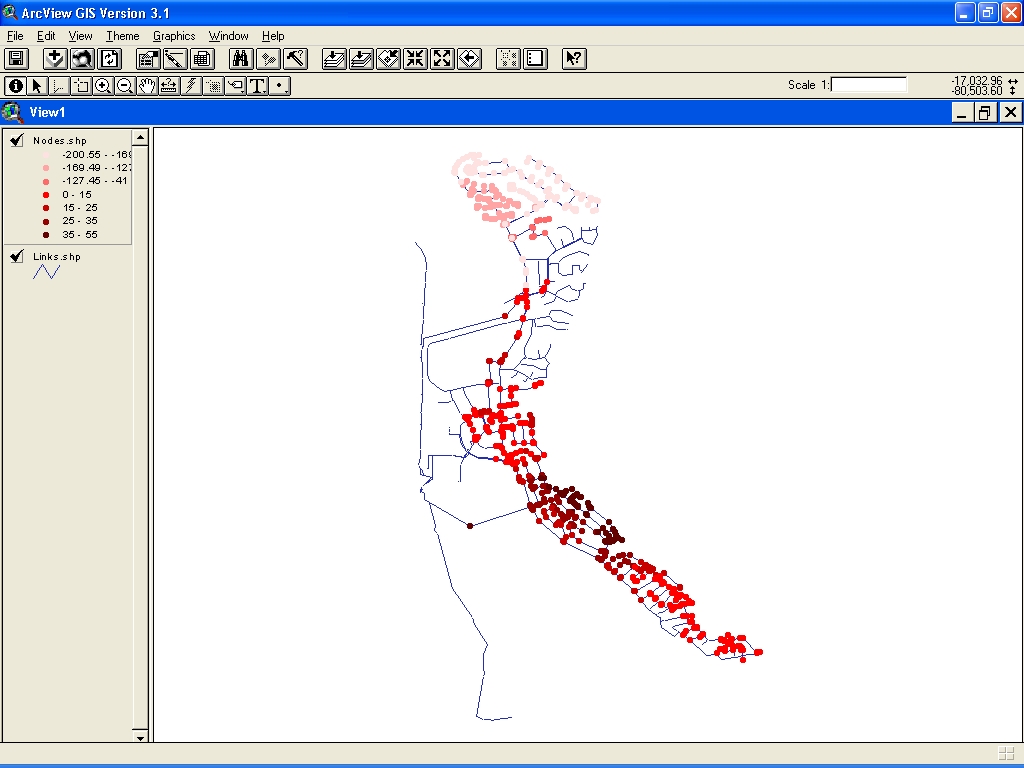

Colour coding water model in GIS

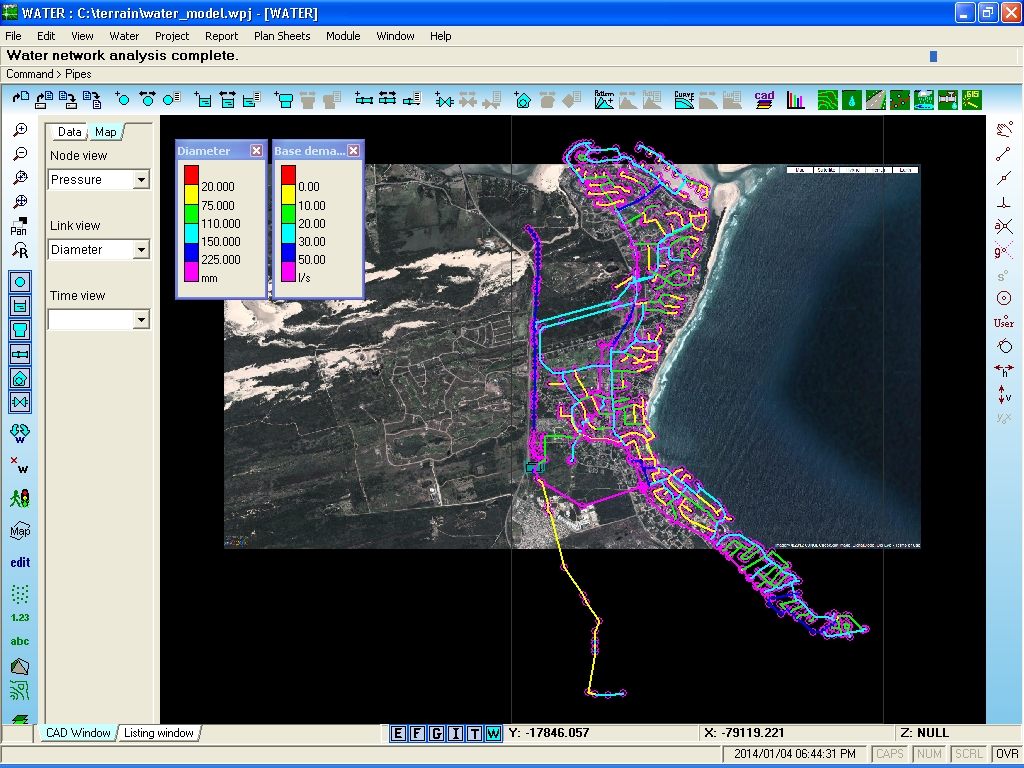

Colour coding network by diameter (links) and demand (nodes)

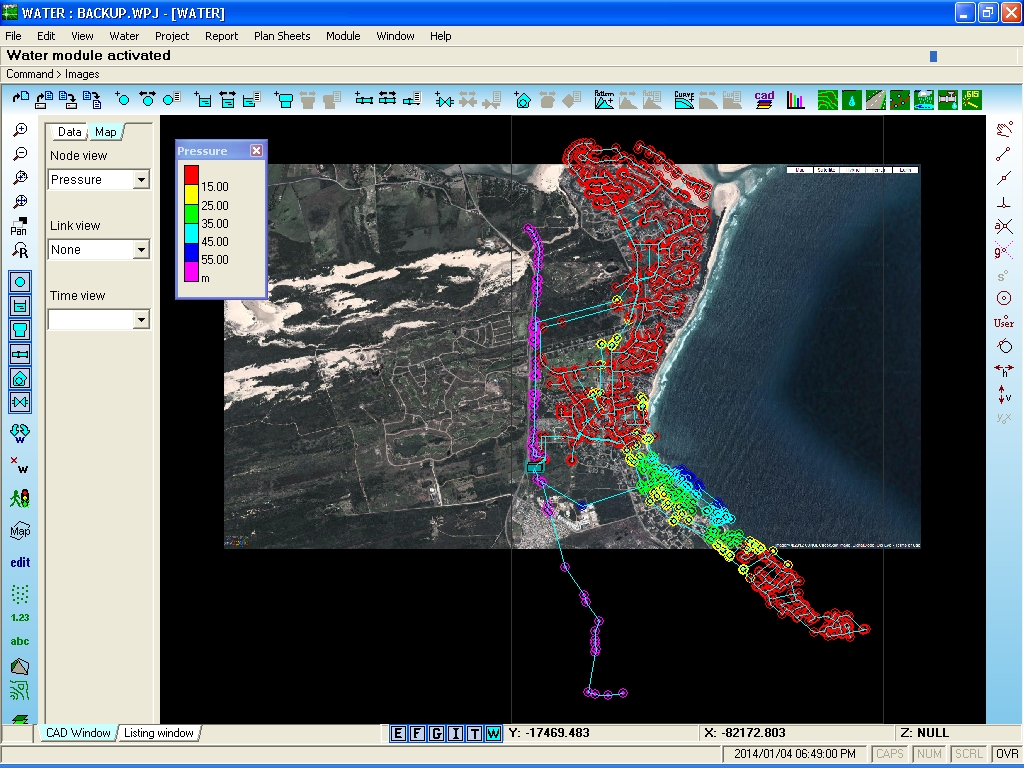

Pressure results colour coded in the Water module

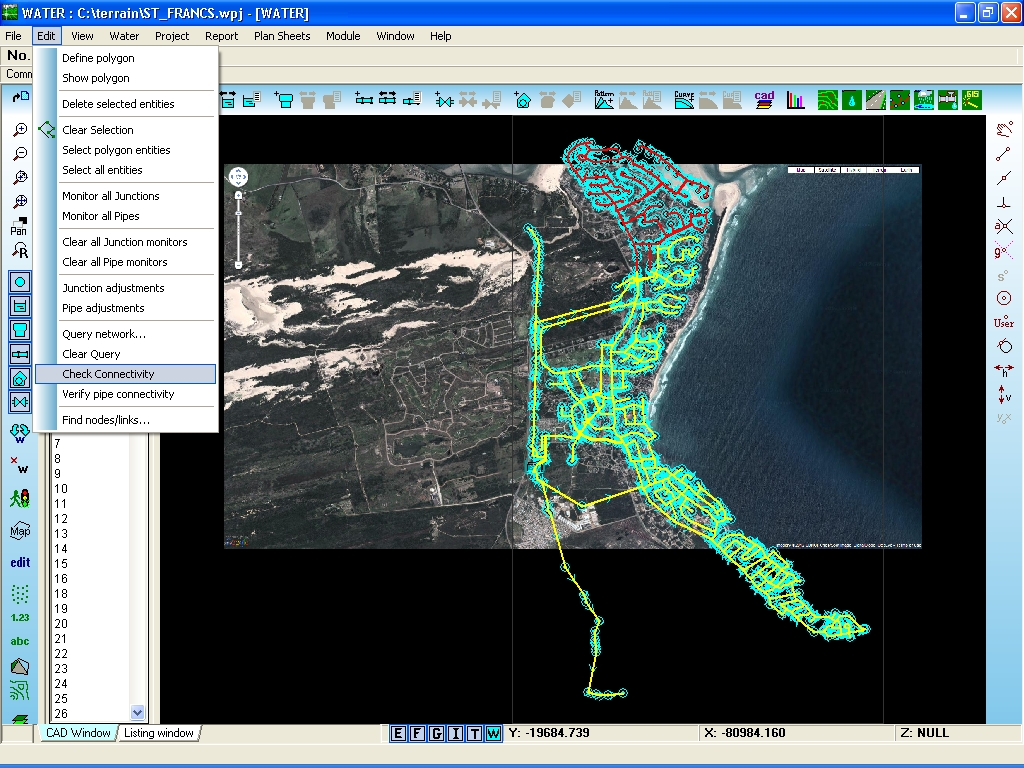

Checking network model for connectivity

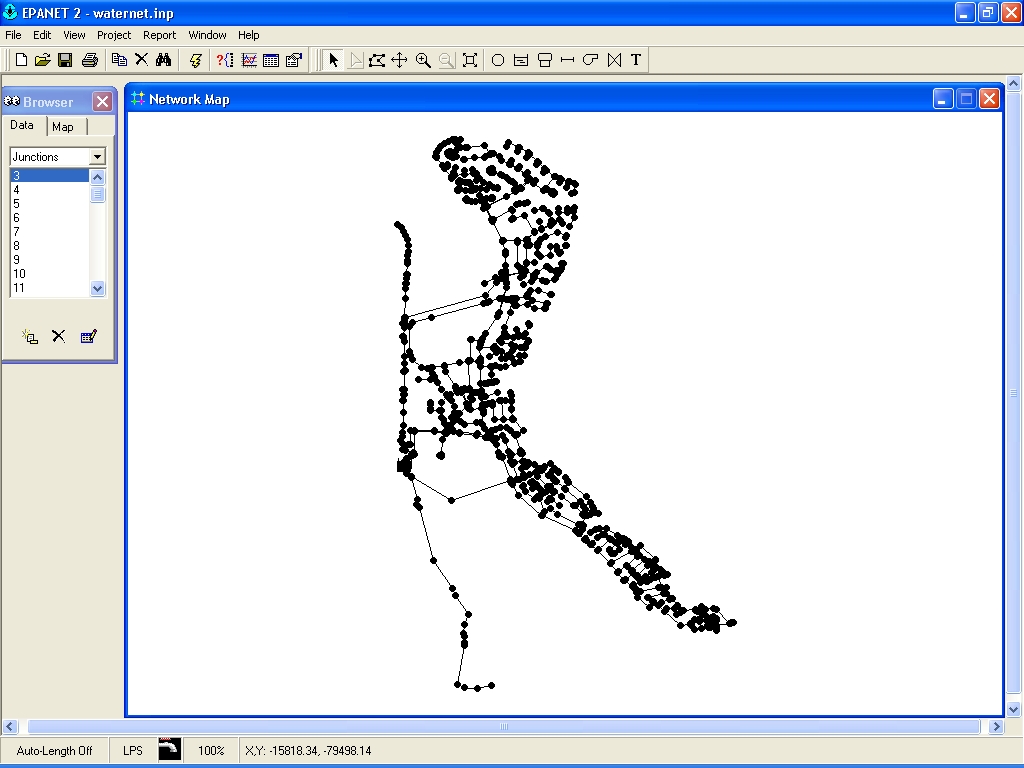

EPANet model of the Civil Suite water network
These sample images show just some of the features of the Civil Suite engineering design software package. The modules in the Civil Suite include the terrain, road, sewer, water, stormwater, pipeline, CAD, GIS and photo modeller modules. Please use the arrows at the left and right of the screen images to navigate through the samples provided.

The Water analysis module is based on the US EPANet system.   Results are 100% the same as those produced by EPANet due to the common analysis system employed.  The incorporation of this module in the Civil Suite allows the water module to interpolate levels automatically from the Terrain module.  In addition, the pipe lengths and node positions etc. are automatically determined from the DWG/DXF drawing loaded.

For more information please also download the videos of the Civil Suite Water module in action.
Alternatively, for an interactive online demonstration please contact us and we will schedule a WebEx demonstration when convenient.
